Description

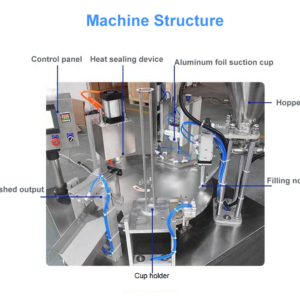

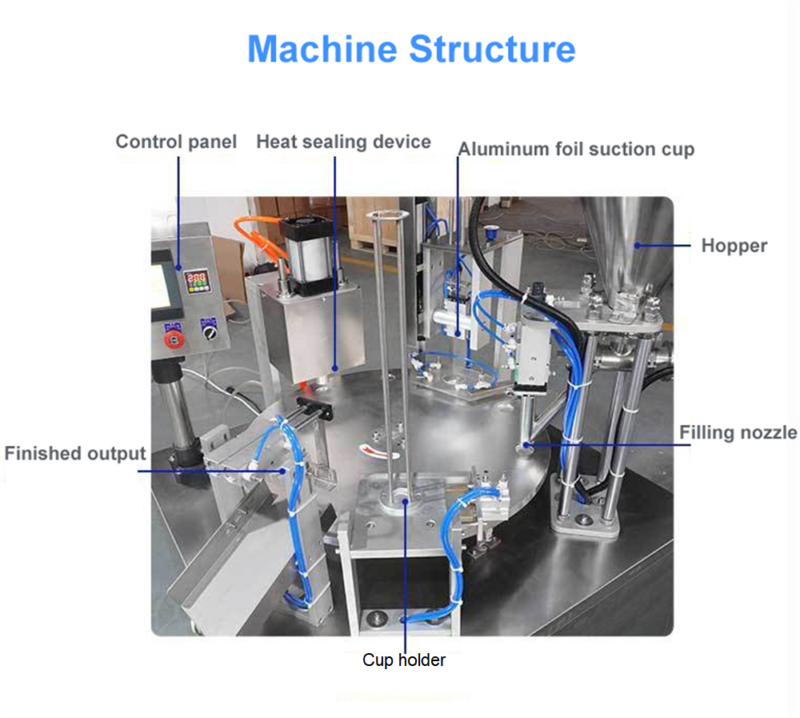

Main Functional structure of the equipment：
1.Rotary star wheel moving & positioning system : including drive motor, reducer,rotary star wheel moving & positioning device. The Aluminum star wheel support the smooth operation of the cups;
2.Automatic cup dropping system : It is mainly completed by pneumatic devices, and the system is composed of pneumatic components,the cup holder, positioning and dividing cup device and other components;Synchronously controlled by sending signals when the template stops action complete.Stable and efficient.
3. Automatic filling system: Single auger quantitative filling system for powder such as coffee powder,sugar powder,etc., filling accuracy is high, and filling quantity can be adjusted;
4. Automatic film release system : It adopts the starting device to automatically drop the film and release the film accurately.
5. Aluminum/PE film Sealing system : It includes heating and constant temperature control parts, temperature sensor, sealing device, heat sealing plate and heat sealing head, and pneumatic sealing motion execution parts.
6. Automatic cup discharge/press system : The cup is sucked out by the suction cup,pressed & sent out automatically.
7.Electrical control system: Control circuit, power supply circuit, electrical protection, safety
Emergency stop device and other components.
8.Pneumatic system: Pneumatic triplet, electric control reversing valve, air path protection, air path, joint and other components;
9.Equipment material: The frame adopts stainless steel structure, and the external plate of the equipment is stainless steel plate.
The template is made of high quality aluminum.
